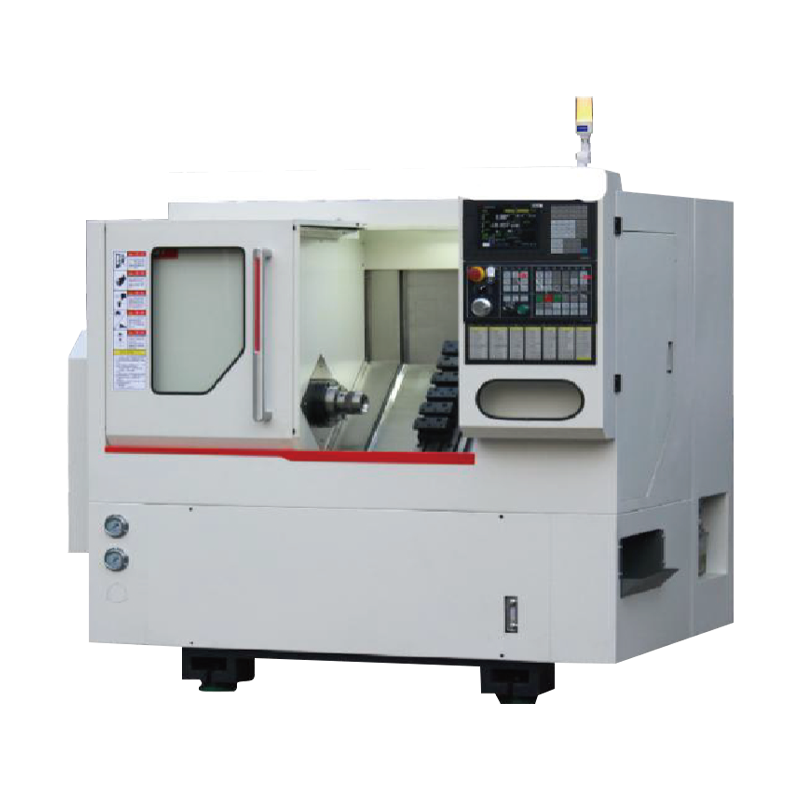

Home / Products / Horizontal CNC turning and milling series / T36P turning, drilling, and boring processing horizontal turning center T36P turning, drilling, and boring processing horizontal turning center
This machine tool has multifunctional processing capabilities, capable of turning, drilling and boring operations, strong structural rigidity, supports heavy cutting, ensures stable processing accuracy, and is suitable for large-scale production. It is equipped with a removable coolant tank for easy cleaning and maintenance, and the standard water tank capacity is 75L, providing efficient cooling effect. Its basic configuration includes a new generation SYTEC/6TA-E control system, a new generation of drive motors and spindle drives, a built-in high-speed precision electric spindle, Taiwan brand guide rails and screws, and an integrated water tank to ensure efficient, stable and precise processing performance.
Production Information
Processing Capability
1. Can be used for turning, drilling, and boring processing
2. High rigidity basic structure, achieving heavy cutting
3. Excellent cutting ability and stable machining accuracy, achieving high production
4. Adopting a withdrawable coolant tank for easy cleaning and cutting
5. Standard water tank capacity: 75L
Machine tool basic configuration
1. New generation SYTEC/6TA-E
2. New generation drive motors and spindle drives
3. Standard built-in high-speed and precision electric spindle
4. Taiwan track and screw
5. Integrated water tank
Technical Parameter
| Item | Unit | T36P |
| Maximum machining diameter | mm | Φ200 |
| Maximum working length | mm | 240 |
| Maximum turning diameter | mm | 400 |
| Maximum turning diameter on a skateboard | mm | 90 |
| Principal axis | Collet chuck | |
| Maximum spindle speed | min-1 | 4000 |
| Spindle end shape | A2-5 | |
| Through the aperture of the spindle | Φ48.5 | |
| The inner diameter of the spindle expansion tube | Φ35 | |
| The inner diameter of the main shaft bearing | mm | Φ80mm |
| Spindle power | KW | 5.5 |
| Rated spindle torque | N.m | 35 |
| Maximum spindle torque | N.m | 70 |
| Tool carriage | 16x16 | |
| Feed axis Z/X direction travel | mm | Z:300 X:380 |
| Feed shaft Z/X motor power | KW | 1.7 |
| Fast shift speed Z/X | m/min | Z:20 X:20 |
| Power supply capacity | KVA | 9 |
| Overall dimensions of the machine(LxWxH) | 1880×1440×1780 (without chip conveyor/ExcJucfing chip conveyor) | |
| Machine weight | kg | 1550 |
Keep in Touch
Ningbo Hongjia CNC Technology Co., Ltd.
Ningbo Hongjia CNC Technology Co., Ltd. started in 2006 and was established in 2018. It is located in Qianwan New District, Ningbo City, Zhejiang Province, south wing of China Yangtze River Delta Economic Zone. It is an enterprise specializing in the research, development, production and sales of CNC metal cutting equipment. As a China T36P turning, drilling, and boring processing horizontal turning center supplier and custom T36P turning, drilling, and boring processing horizontal turning center company, With strong technical strength and rich industry experience, Hongjia CNC is committed to providing customers with advanced CNC solutions to meet the needs of customers in different industries.
Plant And Equipment
What’s News
-
CNC lathes, as indispensable processing equipment in modern manufacturing, are widely used in various industries due to their high efficiency and high precision. Regular maintenance and care are crucial to ensure optimal...
READ MORE -
Vertical CNC lathes, as one of the important processing equipment in modern manufacturing, are widely used in aerospace, automobile manufacturing, precision instruments and other fields. Due to their high precision and h...
READ MORE -
In the machining industry, the choice of CNC lathe directly determines machining efficiency, product accuracy, and cost control. In recent years, chuck turret CNC lathes have become increasingly popular among various mac...
READ MORE
Industry knowledge
T36P CNC lathe: a new paradigm of horizontal machining center integrating turning, drilling and boring
1. Technology-led, unlimited innovation
Since its establishment, Ningbo Hongjia CNC Technology Co., Ltd has always regarded technological innovation as the core driving force for the development of the enterprise. T36P Turning, Drilling, And Boring Processing Horizontal Turning Center is the concentrated embodiment of this concept. The machine tool not only integrates traditional turning functions, but also cleverly integrates drilling and boring processing capabilities, realizing the true meaning of "one machine for multiple uses". Through continuous research and development and optimization, Hongjia CNC enables T36P to easily cope with the processing challenges of complex workpieces while ensuring processing accuracy, providing efficient and reliable solutions for multiple industries such as automobile manufacturing, aerospace, and mold manufacturing.
2. Solid structure, worry-free heavy cutting
T36P Turning, Drilling, And Boring Processing Horizontal Turning Center fully considers the needs of heavy-duty processing in structural design, and uses high-strength materials to ensure the overall rigidity and stability of the machine tool. This design enables the T36P to maintain excellent machining accuracy and stability when facing large workpieces or operations that require high-load cutting, effectively extending the service life of the tool and reducing maintenance costs. In addition, the machine tool is also equipped with an advanced cooling system. The standard 75L removable coolant tank is not only convenient for daily cleaning and maintenance, but also can provide sufficient cooling effect during high-speed machining, effectively avoiding thermal deformation of the workpiece and ensuring machining quality.
3. Intelligent control, precise and efficient
Intelligence is another highlight of the T36P Turning, Drilling, And Boring Processing Horizontal Turning Center. The machine tool is equipped with a new generation of SYTEC/6TA-E control system, which provides a solid guarantee for the precise control of the machine tool with its high-speed computing power and high stability. Combined with the new generation of drive motors and spindle drive technology, the T36P can achieve more delicate and precise machining movements, and can easily handle even tiny details. The built-in high-speed precision electric spindle, combined with Taiwan's well-known brand guide rails and lead screws, further improves the machining accuracy and efficiency of the machine tool, ensuring that every machining can meet the customer's stringent requirements.
4. The details are the real thing
In addition to its powerful technical performance, the T36P is also designed with the user experience in mind. The machine's operating interface is simple and intuitive, and even first-time operators can quickly get started. At the same time, Ningbo Hongjia CNC Technology Co., Ltd also provides comprehensive after-sales service and technical support to ensure that any problems encountered by customers during use can be solved in a timely manner. In addition, the modular design of the machine makes it more convenient for maintenance and upgrading, saving customers valuable time and cost.
