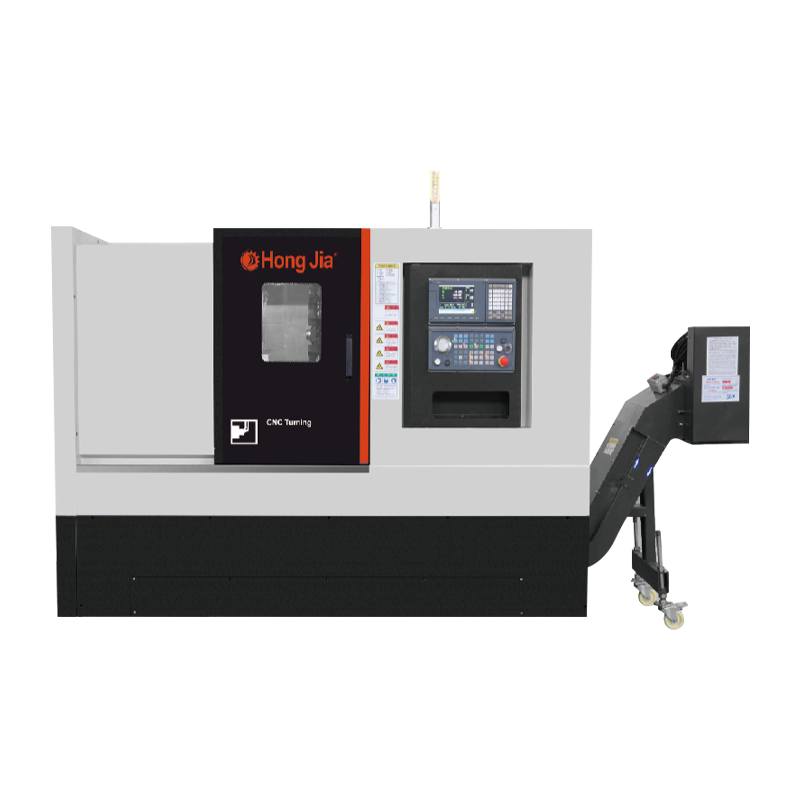

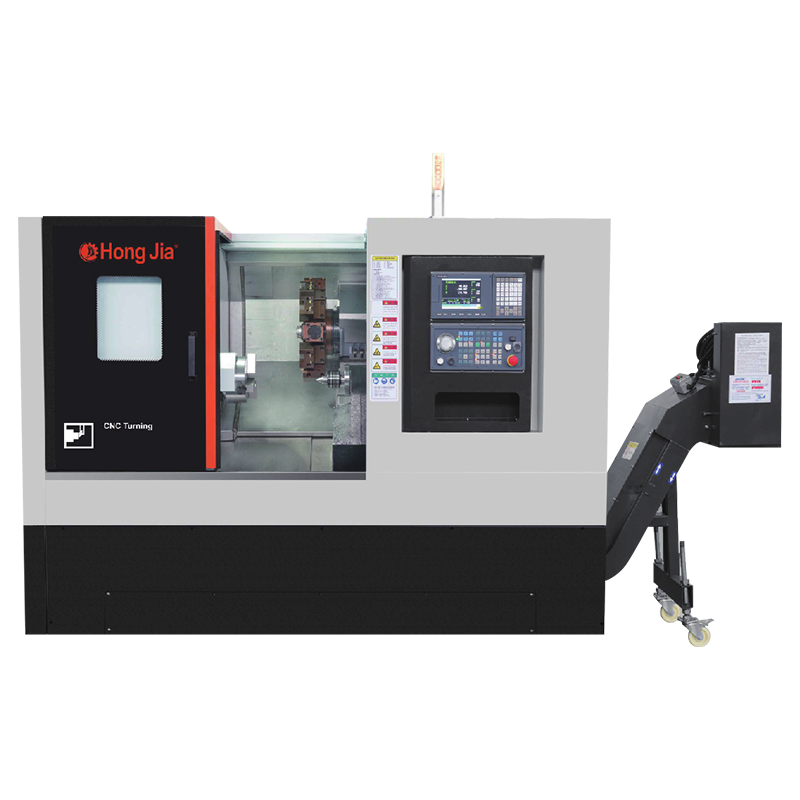

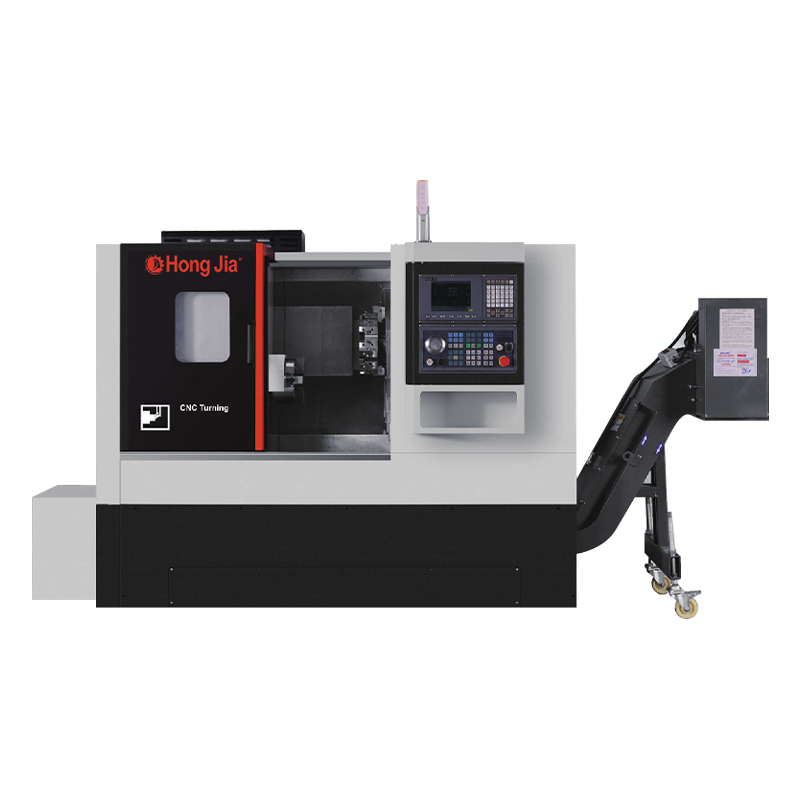

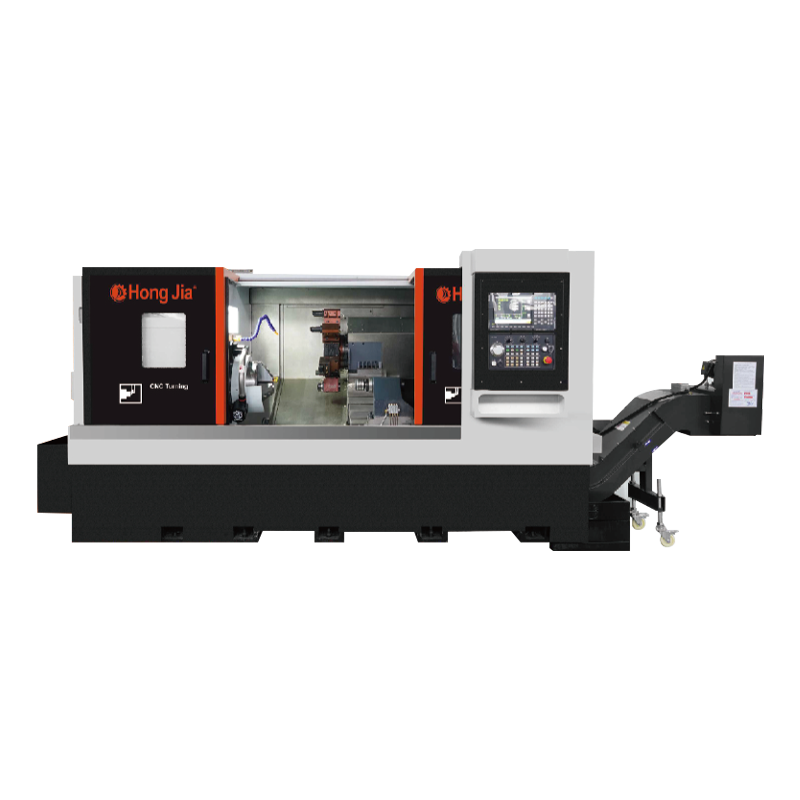

NC-106 horizontal turning center
The horizontal turning center is not only good at traditional turning operations, but also integrates multiple processing functions such as drilling, boring, milling and tapping. One device can complete multiple processes, greatly reducing the number of workpiece transfers and improving production efficiency. The use of advanced servo control systems and precision guide rail design ensures that each processing can meet the micron-level accuracy requirements. Whether it is turning of complex contours or fine milling operations, it can be easily handled.
The overall casting bed structure has undergone strict heat treatment to ensure that the machine tool can still maintain stability and accuracy under long-term heavy-load processing. This provides users with higher processing reliability and longer service life. Horizontal turning centers are widely used in aerospace, automobile manufacturing, mold manufacturing, precision machinery and other fields.
Production Information
Processing Capability
1. Lathe, drilling, and boring can be carried out
2. High rigidity basic structure, to achieve heavy cutting
3. Excellent cutting ability and stable processing accuracy to achieve high production
4. The draw-out coolant tank is used for easy cleaning and cutting
5. Standard tank capacity: 100L
Machine tool basic configuration
1. New generation SYTEC/7TA-E
2. New generation drive motor and spindle drive
3. The new generation of high torque servo spindle motor is standard
4. Taiwan or Japan wire rail and screw
5. Separate water tank
6. Chip removal machine
7. Oil pressure three claws
8. Standard with built-in high-speed unit precision mechanical spindle
Technical Parameter
| Item | NC-106 |
| Max. machining diameter | Φ300mm |
| Max. working length | 350mm |
| Max. turning diameter | 500mm |
| Spindle chuck dimensions | 6/8inch |
| Max. spindle speed | 4000min-1 |
| Spindle end shape | A2-5 |
| Through the aperture of the spindle | Φ56mm |
| The inner diameter of the spindle expansion tube | Φ45mm |
| The inner diameter of the main shaft bearing | Φ90mm |
| Spindle power | 7.5KW/11KW |
| Rated spindle torque | 70N.m |
| Max. spindle torque | 100N.m |
| Number of turret surfaces | 8 |
| Handle of outer diameter tool | 25X25 |
| Bit seat bore | Φ32mm |
| Travel Z/X | Z: 370mm X:200mm |
| Fast shift speed Z/X | Z: 20m/min X:20m/min |
| Power supply capacity | 18KVA |
| Overall dimensions of the machine (LxWxH) | 2350×1560×1715 mm(without chip conveyor) Chip removal machine not included |
| Machine weight | 3300kg |
