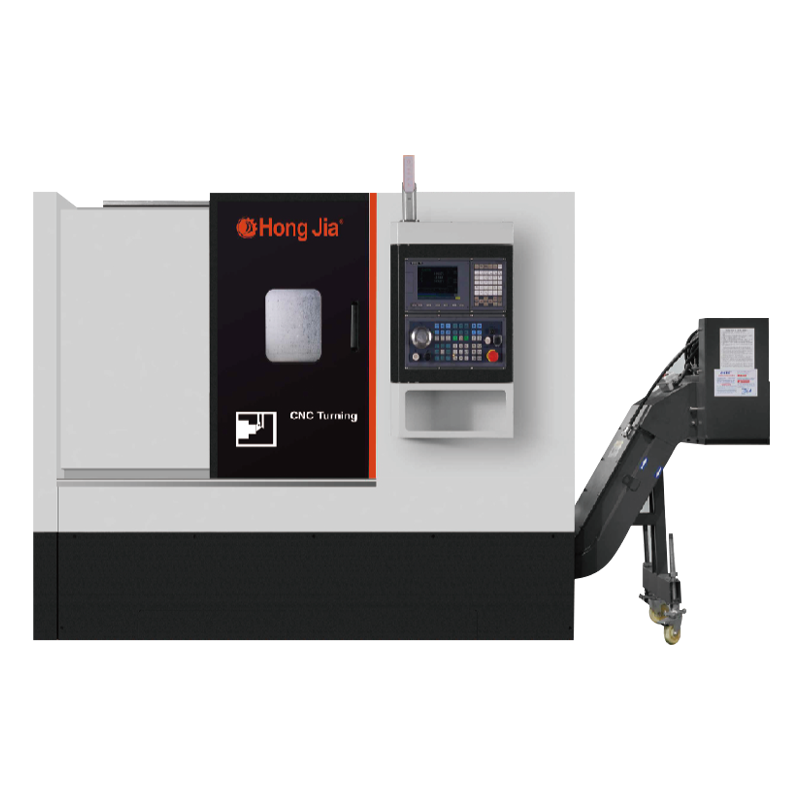

NC-106D-Y 3-axis synchronous machining horizontal turning center

In modern manufacturing, high-precision and high-efficiency CNC machine tools have become an important tool for enterprises to enhance their competitiveness. As a professional CNC metal cutting equipment R&D, production and sales company, Ningbo Hongjia CNC Technology Co., Ltd is committed to providing customers with advanced CNC solutions with strong technical strength and rich industry experience. Among them, the 3-Axis Synchronous Machining Horizontal Turning Center is a high-performance CNC machine tool that supports the precision machining needs of different industries with excellent machining capabilities and precise technical parameters.

Efficient and precise machining capabilities
The 3-Axis Synchronous Machining Horizontal Turning Center has excellent machining capabilities, with a maximum machining diameter of Φ230mm and a maximum machining length of 360mm, suitable for machining various large-sized workpieces. Its spindle speed can reach up to 5000 rpm, equipped with an A2-5 spindle end and a Φ56mm through-hole spindle, which can maintain stable machining performance at high speeds. These characteristics make the equipment particularly widely used in industries such as aerospace, automobile manufacturing, and precision instruments.

Powerful turret configuration

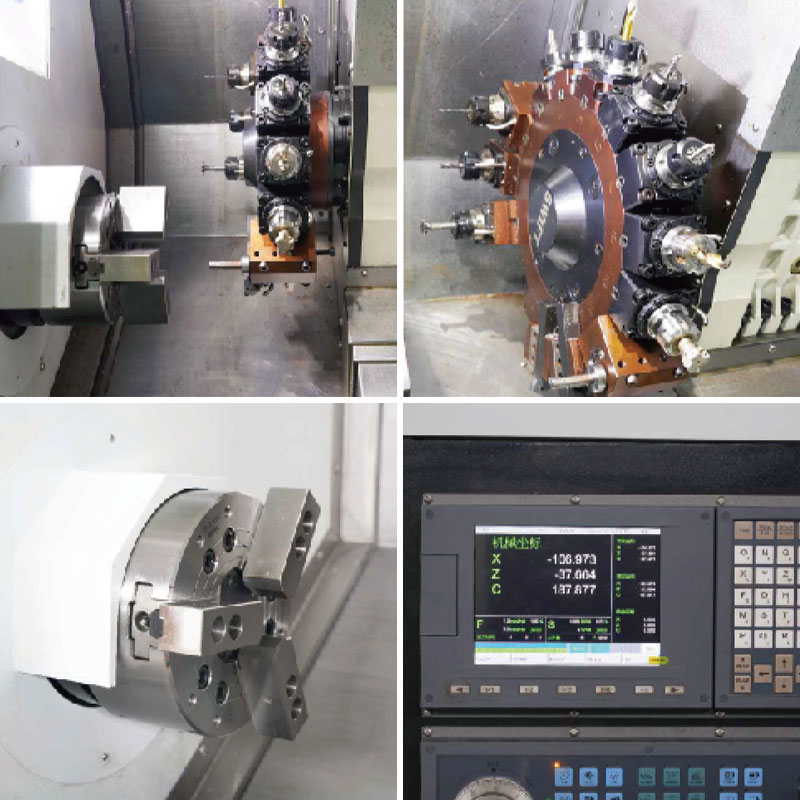

The machine tool adopts a 12/15-station turret and is equipped with a BMT40/ER25 power turret. The maximum speed of the power head reaches 4000 rpm and has a torque of 7.7N·m, which can meet the processing needs of complex parts. The application of the power turret enables the machine tool to complete multiple processes such as milling, drilling, and tapping in one clamping, greatly improving processing efficiency and reducing errors, and improving product consistency.

Accurate multi-axis linkage control
The feed axis travel of the 3-Axis Synchronous Machining Horizontal Turning Center covers four directions: Z, X, Y, and A, and the rapid moving speed is up to 20 meters/minute, ensuring the efficiency and accuracy of the processing process. Synchronous processing technology enables the machine tool to coordinate motion in multiple axes, thereby achieving more complex surface processing and high-precision part production. This feature is particularly important in the demanding precision manufacturing industry.

Compact and stable structure
The overall dimensions of the machine tool are 2310×1510×2080mm, with a total weight of 3800kg. The structure is compact and stable, and it can maintain excellent vibration resistance during long-term operation to ensure processing accuracy. In addition, the power demand of the whole machine is 13KVA, which not only meets the requirements of high-intensity processing, but also has good energy consumption control capabilities.

Suitable for a variety of industrial applications
As a high-performance CNC machine tool, 3-Axis Synchronous Machining Horizontal Turning Center is widely used in various precision manufacturing fields. Whether it is automotive parts, medical equipment, electronic communication equipment, or aerospace industry, this machine tool can provide enterprises with excellent production efficiency and high-quality processing quality with its efficient and stable processing capabilities.

Leading technical support and after-sales service
Ningbo Hongjia CNC Technology Co., Ltd has always adhered to the concept of "technological innovation and quality excellence", continuously optimized product performance, and provided professional technical support and perfect after-sales service. With advanced production technology and strict quality control, Hongjia CNC ensures that every CNC machine tool shipped out of the factory has high-quality performance, creating greater production value for customers.
