Home / Products / Horizontal CNC turning and milling series / NC-106DS dual-spindle automatic docking horizontal turning center NC-106DS dual-spindle automatic docking horizontal turning center

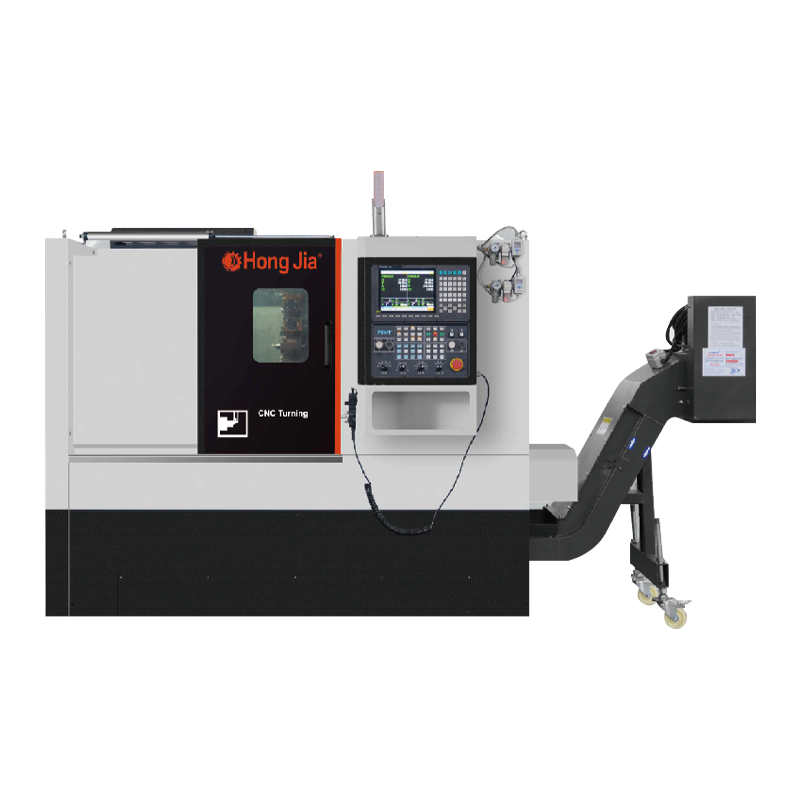

The dual-spindle automatic docking horizontal turning center is an advanced machine tool that integrates multiple processing functions such as turning, drilling, boring, milling, and tapping. Its unique dual-spindle design realizes the automatic docking of the workpiece between the two spindles, greatly improving the processing efficiency and precision.

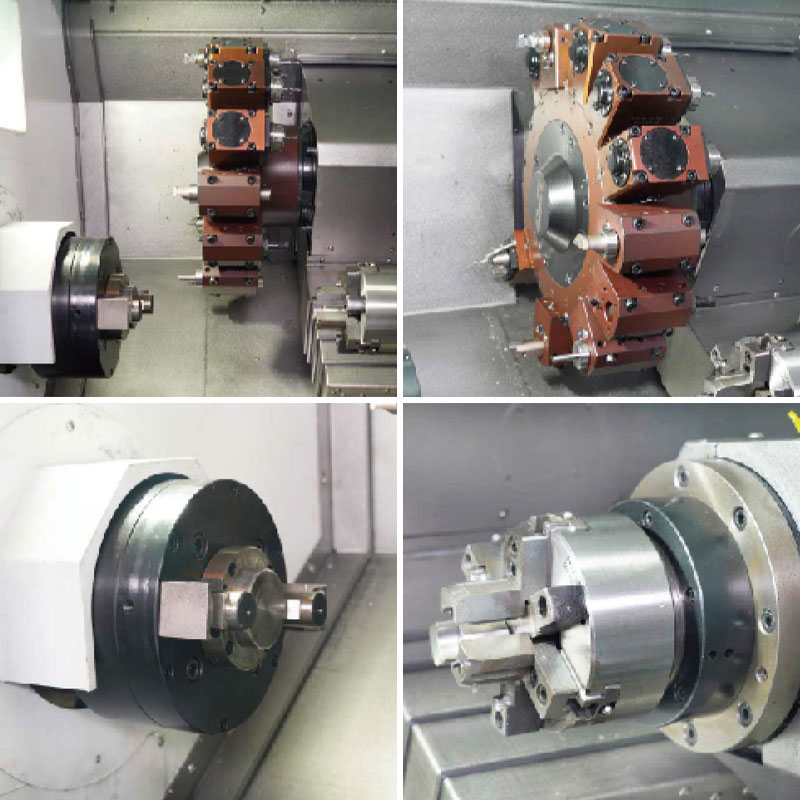

The dual-spindle structure can achieve seamless docking of the workpiece between the two spindles, reduce the number of clamping times, and improve processing efficiency. The spindle has stable performance and high speed, which is suitable for precision processing of various materials. It integrates multiple processing functions such as turning, drilling, boring, milling, and tapping to meet the one-time processing needs of complex parts.
The coolant tank adopts a pull-out design, which is convenient for users to clean and maintain, ensuring the long-term stable operation of the machine tool. The coolant is circulated to effectively cool the cutting area and extend the service life of the tool.
Production Information
Processing Capability
1. Lathe, drilling, and boring can be carried out
2. High rigidity basic structure, to achieve heavy cutting
3. Excellent cutting ability and stable processing accuracy to achieve high production
4. The draw-out coolant tank is used for easy cleaning and cutting
5. Standard tank capacity: 100L
Machine tool basic configuration
1. New generation SYTEC/22TB
2. New generation drive motor and spindle drive
3. Built-in high-speed precision motorized spindle is standard
4. Taiwan or Japan wire rail and screw
5. Separate water tank
6. Chip removal machine
7. Oil pressure three claws
8. Power tower 15 stations
Technical Parameter
| Item | NC-106DS |
| Max. machining diameter | Φ160mm |
| Max. working length | 250mm |
| Max. turning diameter | 500mm |
| Spindle chuck dimensions | 6/8 inch |
| Spindle end shape | 5000min-1 |
| Through aperture of spindle | A2-5 |
| Inner diameter of spindle expansion tube | Φ56mm |
| Inner diameter of main shaft bearing | Φ45mm |
| Spindle power | Φ80mm |
| Rated spindle torque | 11KW |
| Max. spindle torque | 35N.m |
| Number of turret surfaces | 70N.m |
| Handle of outer diameter tool | 15 |
| Bit seat bore | 20X20 |
| Turret power head model | Φ25mm |
| Maximum speed of turret power head | BMT40/ER25 |
| Cutter tower power head motor power | 4000min-1 |
| Turret power head torque | 2.4kw |
| Turret power head torque | 7.7N.m |
| Feed axis Z/X direction travel | Z:370mm X:185mm |
| Feed shaft A direction travel | A:360mm |
| Feed shaft Z/X motor power | 1.7KW |
| Fast shift speed Z/X | Z: 20m/min X:20m/min |
| Fast shift speed A | A:20m/min |
| Back shaft power | 3.7KW |
| Max. speed of the back shaft | 4500min-1 |
| Abaxialend | A2-4 |
| Back spindle through the aperture | Φ36mm |
| Back shaft chuck | 5inch |
| Rated torque of the back shaft | 14.1 N.m |
| Max. torque of the back shaft | 30 N.m |
| Power supply capacity | 13KVA |
| Overall dimensions of the machine (LxWxH) | 2260×1560×1715mm (Without chip conveyor） Chip removal machine not included |
| Machine weight | 3800kg |
Keep in Touch
Ningbo Hongjia CNC Technology Co., Ltd.
Ningbo Hongjia CNC Technology Co., Ltd. started in 2006 and was established in 2018. It is located in Qianwan New District, Ningbo City, Zhejiang Province, south wing of China Yangtze River Delta Economic Zone. It is an enterprise specializing in the research, development, production and sales of CNC metal cutting equipment. As a China NC-106DS dual-spindle automatic docking horizontal turning center supplier and custom NC-106DS dual-spindle automatic docking horizontal turning center company, With strong technical strength and rich industry experience, Hongjia CNC is committed to providing customers with advanced CNC solutions to meet the needs of customers in different industries.
Plant And Equipment
What’s News
-
CNC lathes, as indispensable processing equipment in modern manufacturing, are widely used in various industries due to their high efficiency and high precision. Regular maintenance and care are crucial to ensure optimal...
READ MORE -
Vertical CNC lathes, as one of the important processing equipment in modern manufacturing, are widely used in aerospace, automobile manufacturing, precision instruments and other fields. Due to their high precision and h...
READ MORE -
In the machining industry, the choice of CNC lathe directly determines machining efficiency, product accuracy, and cost control. In recent years, chuck turret CNC lathes have become increasingly popular among various mac...
READ MORE
Industry knowledge
In the modern manufacturing industry, efficient, precise and automated processing equipment is becoming an important guarantee for the competitiveness of enterprises. Ningbo Hongjia CNC Technology Co., Ltd, as an industry-leading CNC metal cutting equipment R&D, production and sales company, provides customers with advanced CNC solutions with strong technical strength and rich industry experience to meet the processing needs of different industries. Among them, the Dual-Spindle Automatic Docking Horizontal Turning Center is a high-performance and efficient advanced machine tool launched by it.
Efficient and precise processing capabilities
The Dual-Spindle Automatic Docking Horizontal Turning Center integrates multiple processing functions such as turning, drilling, boring, milling and tapping. Its unique dual-spindle design realizes the automatic docking of workpieces between the two spindles, greatly improving the processing efficiency and precision. Whether it is mass production or high-precision processing of complex parts, the machine tool can show excellent performance.
Powerful basic structure
The machine tool adopts a high-rigidity basic structure design, which can withstand heavy cutting operations and ensure long-term stable operation. At the same time, it is equipped with a new generation of SYTEC/22TB control system and a new generation of drive motors and spindle drives, ensuring an efficient and accurate processing process. In addition, the machine tool has a built-in high-speed precision electric spindle, which can meet the needs of high-speed and high-precision processing and provide customers with higher quality processing results.
Advanced configuration and technology
Dual-Spindle Automatic Docking Horizontal Turning Center is equipped with guide rails and lead screws imported from Taiwan or Japan to ensure the accuracy and durability of the machine tool. At the same time, the independent water tank design and the chip conveyor equipped make cleaning more convenient and effectively improve the maintenance efficiency of the equipment. In addition, the machine tool also has a hydraulic three-jaw chuck and a 15-station power turret, which further enhances the flexibility of processing and enables it to cope with more complex and diverse processing needs.
Convenient cooling and chip removal system
During the processing process, the quality of the cooling system directly affects the quality of the workpiece and the life of the tool. The Dual-Spindle Automatic Docking Horizontal Turning Center adopts a pull-out cooling water tank design, which makes the cleaning of the coolant easier. The standard water tank capacity is 100L, which can fully meet the cooling needs of long-term processing and reduce the precision error caused by temperature rise.
Industry Application and Market Advantages
Dual-Spindle Automatic Docking Horizontal Turning Center is widely used in many industries such as automobile manufacturing, aerospace, precision molds, medical devices, etc. due to its high rigidity, high precision and high efficiency. Its multi-functional integration allows enterprises to complete multiple processing tasks on the same equipment, reduce the time for machine change and debugging, and improve production efficiency.
Ningbo Hongjia CNC Technology Co., Ltd has always adhered to technological innovation and continuously optimized product performance to meet the changing needs of the market. Its Dual-Spindle Automatic Docking Horizontal Turning Center has become an important choice for many companies to improve processing efficiency and ensure product quality with its leading design concept, stable processing performance and excellent intelligence level.
